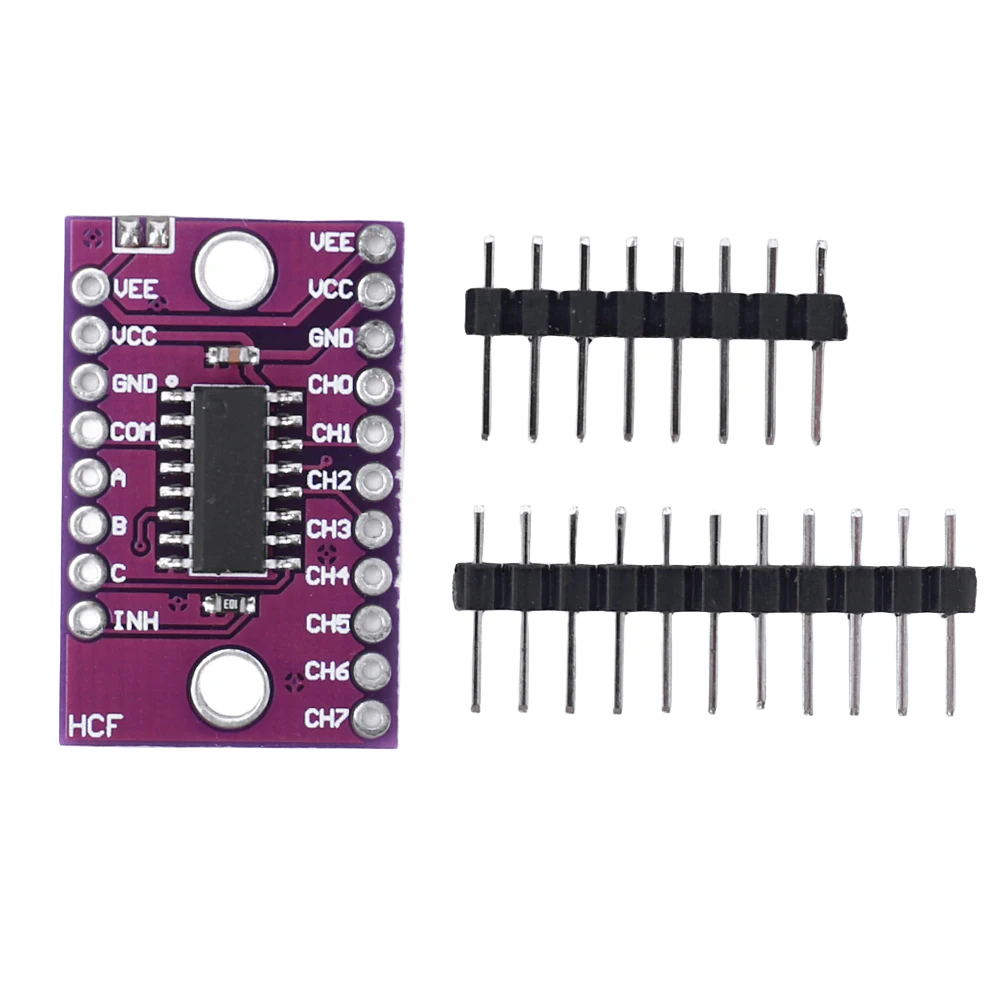

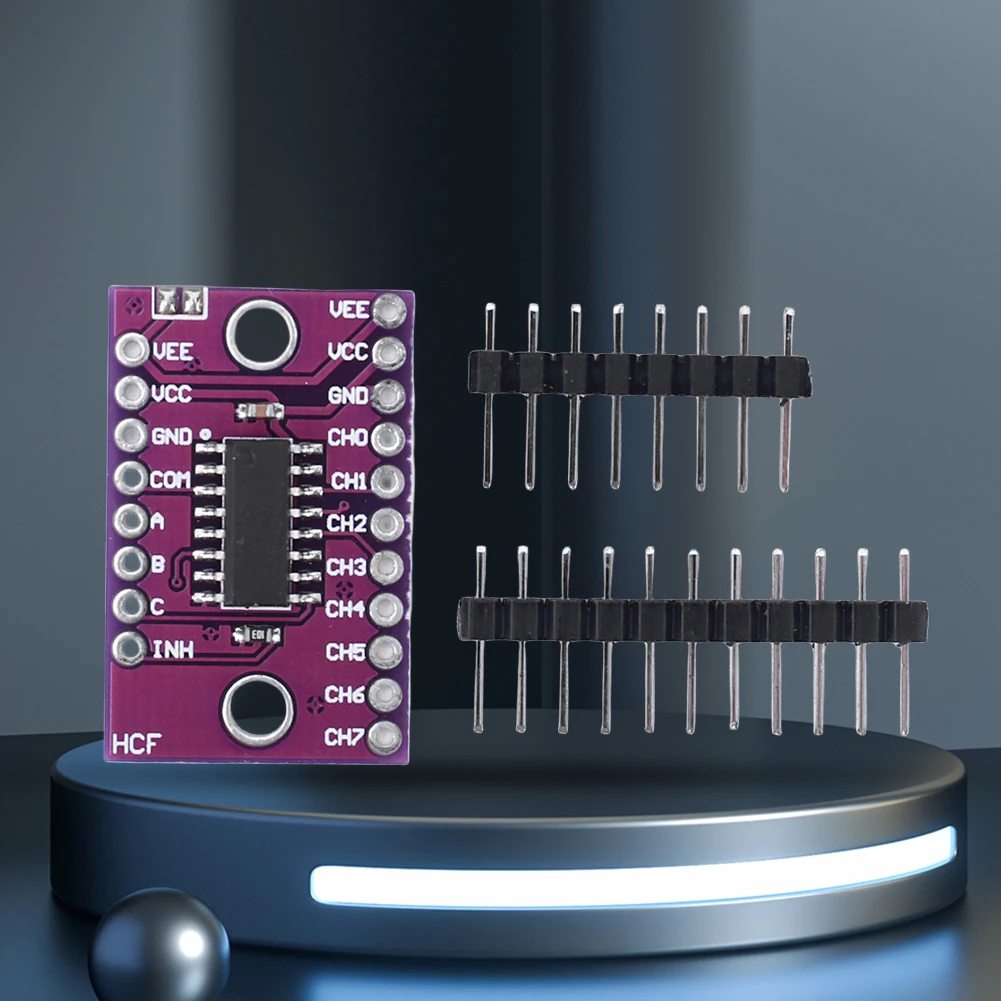

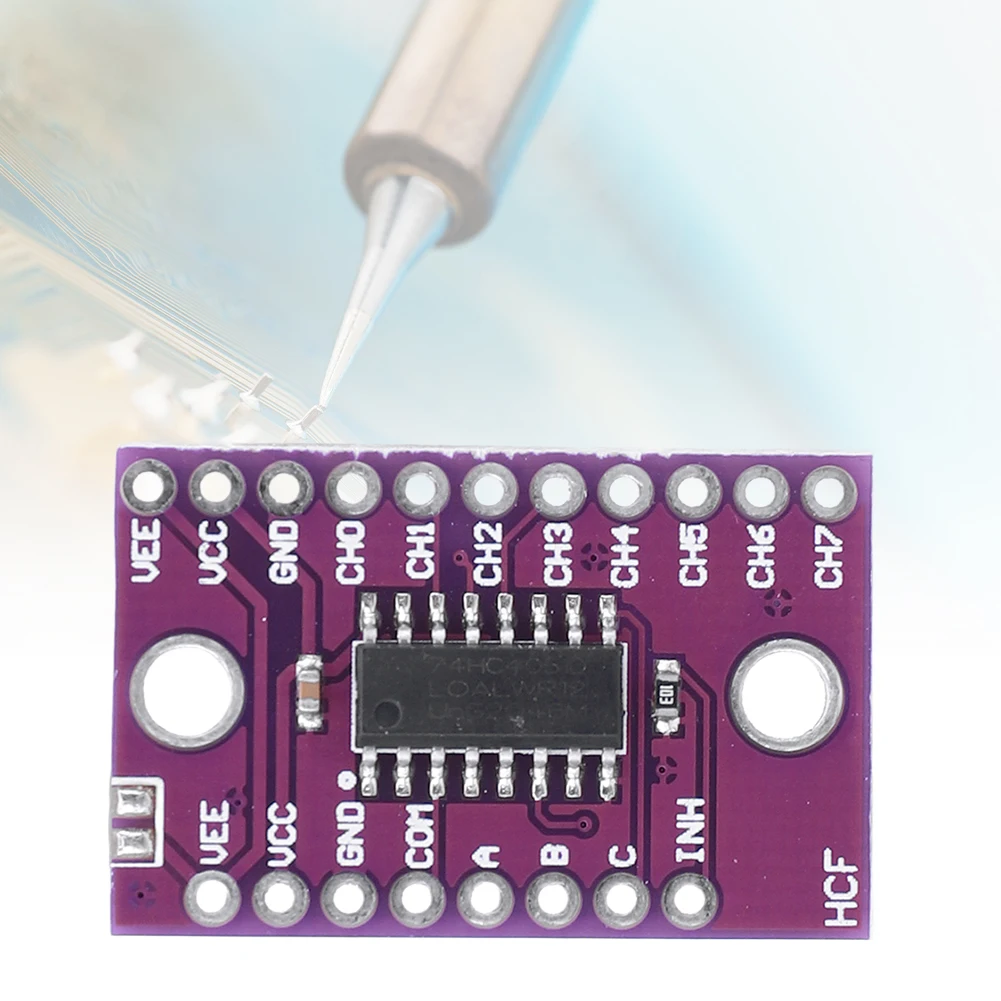

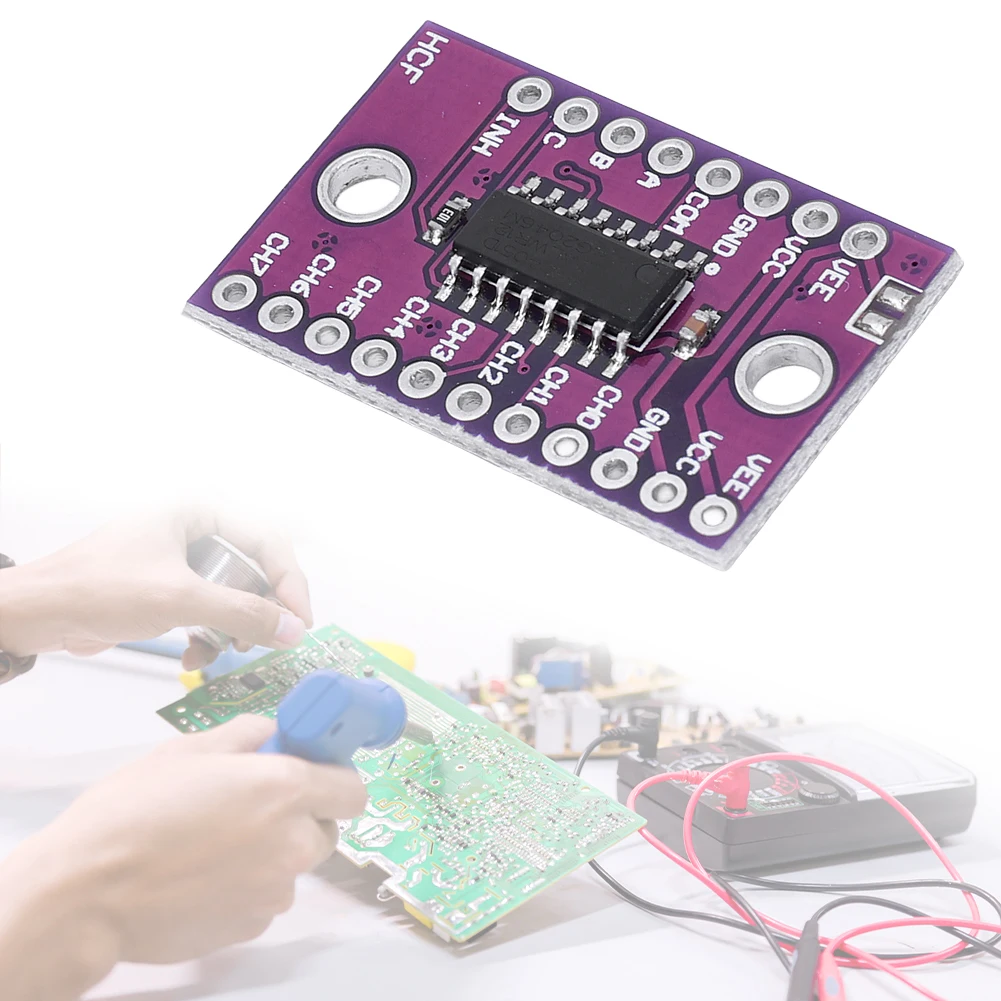

74HC4051 CD4051 8-Channel-Mux Analog Multiplexer Demultiplexer Module Electronic Switch Multiplexers for Arduino

74HC4051 CD4051 Single 8-Channel Analog Multiplexer Demultiplexer Module Analog Multiplexer Selector Module for Arduino

Feature:

1. High Channel Count: With 8 channels, the analog multiplexer demultiplexer module allows simultaneous connection and switching of multiple input or output signals, enabling efficient handling of complex signal routing.
2. Digital Control: The analog multiplexer selector module can be controlled through digital inputs, simplifying signal switching and multiplexing operations. This enhances ease of use and reduces the complexity of signal management.
3. Low Voltage Operation: The multiplexers distributor resolver operates reliably at low voltages, typically ranging from 2V to 6V. This makes it well-suited for low-voltage circuits and low-power applications, providing flexibility and energy efficiency.
4. Low Resistance and Crosstalk: The digitally controlled electronic switch multiplexers features low resistance and crosstalk characteristics, delivering reduced signal distortion and interference. This ensures high signal integrity and accurate transmission of data.
5. Versatility and Compatibility: The analog multiplexer board module’s high channel count, digital control, low voltage operation, and low resistance/interference make it compatible with various systems and applications. It offers versatility to adapt to different signal requirements and ensures seamless integration into diverse setups.

Specification:
Origin: Mainland China

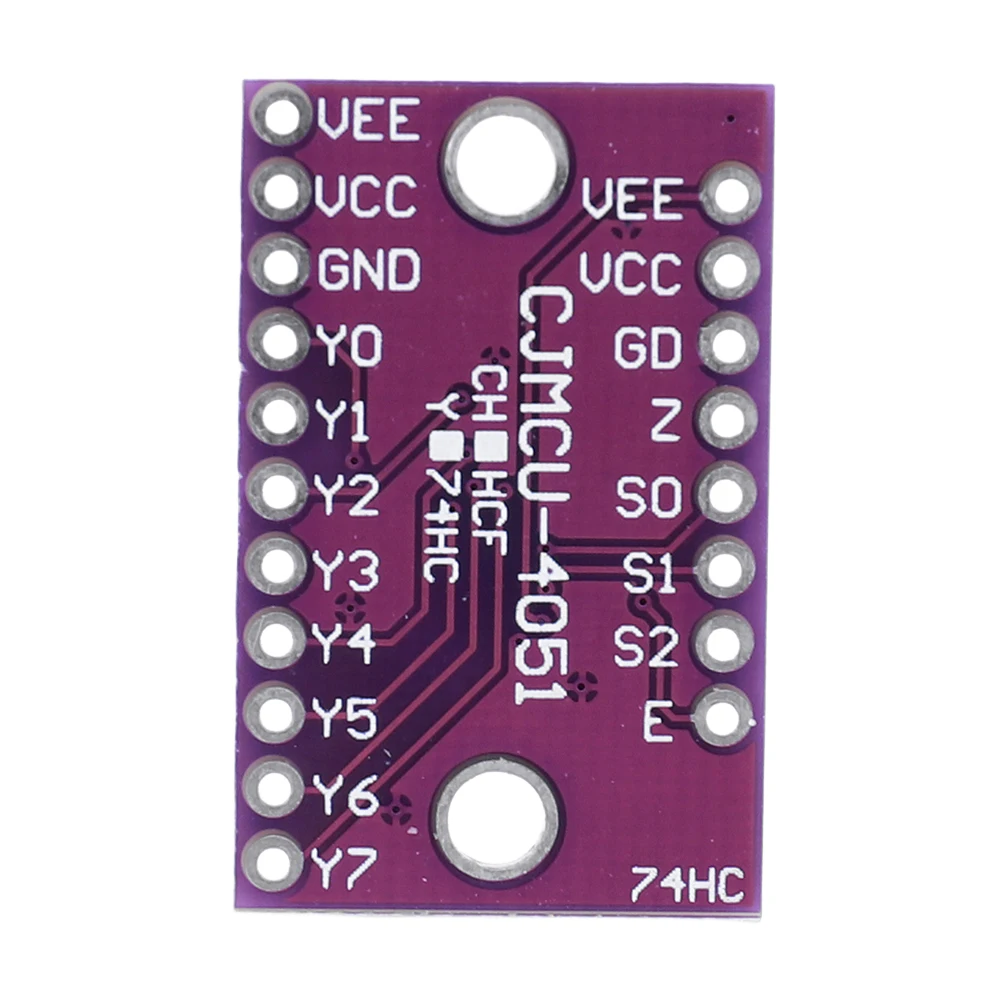

The 74HC4051 is a single-pole, eight-throw analog switch (SP8T) suitable for analog or digital 8:1 multiplexer/demultiplexer applications. The switch has three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switch is closed. Inputs include clamp diodes. This allows the input interface to be connected to a voltage above VCC using a current limiting resistor.
Wide Analog Input Voltage Range from -5 V to +5 V Complies with JEDEC Standard No. 1. 7A
Low on-resistance:
80 ohm (typ) at VCC-VEE = 4.5 V 70 ohm (typ) at VCC-VEE = 6.0 V 60 ohm (typ) at VCC-VEE = 9.0 V
Logic Level Translation: Enables 5 V logic to communicate with ±5 V analog signals Typical ‘break before make’ built-in ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101E exceeds 1000 V
Specified between -40°C to +85°C and -40°C to +125°C

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

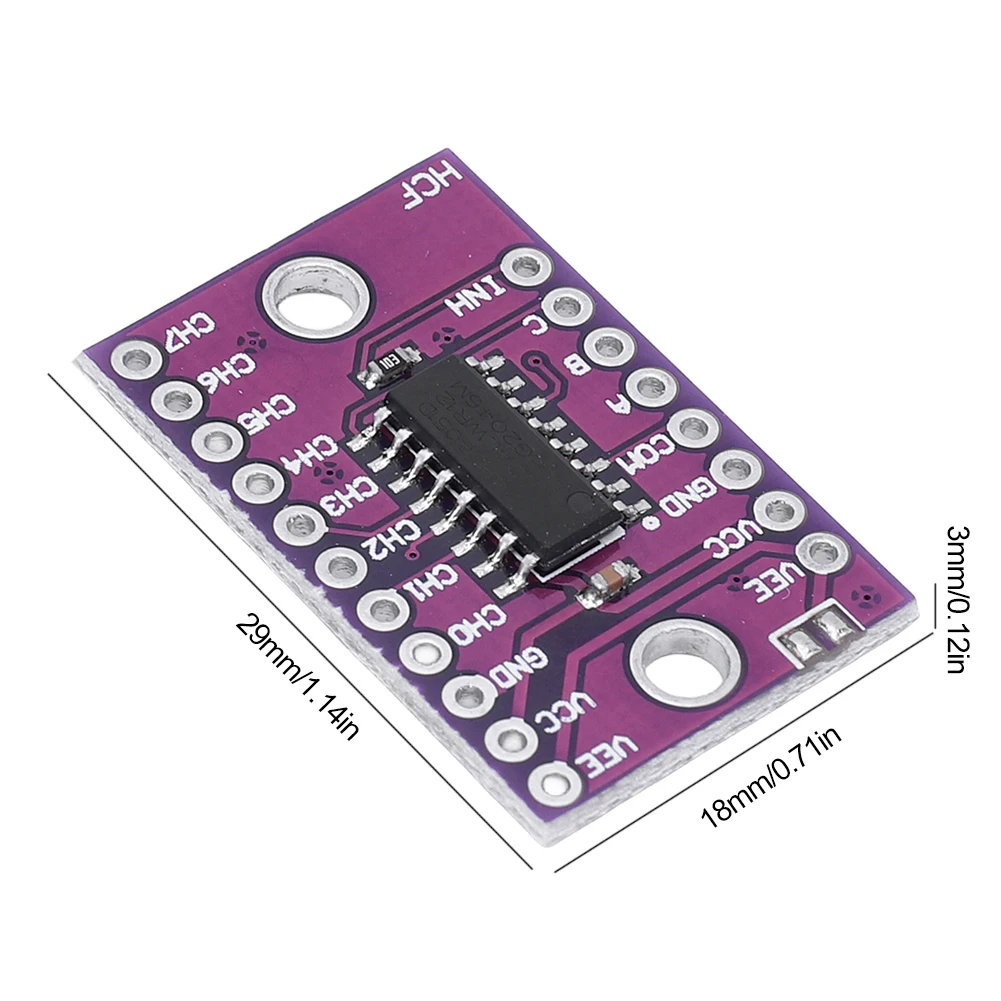

Please allow 1-2cm measuring deviation due to manual measurement.
